ZX Spectrum Composite Video Output Mod: A Detailed Guide for Beginners


Welcome to the World of ZX Spectrum Mods!

In the realm of retro computing, the ZX Spectrum holds a special place in the hearts of enthusiasts. Its iconic design, games, and vibrant community continue to inspire passion even decades after its release. One of the key aspects that make the ZX Spectrum so endearing is the ability to modify and improve its performance, bringing it into the modern era. In this blog post, we’ll introduce you to one such modification: the Composite Video Output Mod.

🔧 Why Composite Video Output Mod?

The original ZX Spectrum came with an RF output, which doesn’t provide the best video quality on modern televisions and monitors. By upgrading to composite video, you can:

  • Enhance the video signal quality
  • Enjoy a clearer and more stable picture
  • Easily connect to a wider range of displays

🎯 A Guide for Beginners

This detailed guide is tailored for beginners, offering:

  • A comprehensive introduction to the mod
  • A step-by-step walkthrough for performing the upgrade
  • Troubleshooting tips and solutions for common issues

So, without further ado, let’s dive into the fascinating world of ZX Spectrum modifications and learn how to perform the Composite Video Output Mod. Happy modding!

A Brief History of the ZX Spectrum and the Need for Video Output Mods

The ZX Spectrum, developed by Sir Clive Sinclair’s company Sinclair Research, was first launched in the United Kingdom in 1982. It quickly became a popular home computer, thanks to its affordability, compact design, and extensive library of games and software.

🕰️ The Evolution of the ZX Spectrum

Over the years, the ZX Spectrum went through several iterations and upgrades, including:

  • The original 16K and 48K models (1982)
  • ZX Spectrum+ with an improved keyboard (1984)
  • ZX Spectrum 128 with more memory and improved sound (1985)
  • ZX Spectrum +2 and +3 with built-in tape and disk drives (1986-1987)

📺 Challenges with the Original Video Output

The original ZX Spectrum models used an RF (Radio Frequency) output to connect to a television. While this was a standard method in the early 1980s, it had several drawbacks:

  • Susceptible to interference, resulting in a noisy image
  • Incompatibility with modern TVs and monitors
  • Limited to analog signals, affecting image quality

💡 The Importance of Video Output Modifications

Upgrading the video output on a ZX Spectrum is essential to overcome these limitations and enhance the user experience. Some of the reasons for upgrading the video output include:

  • Improved image quality: Composite video provides a cleaner, more stable picture than RF
  • Compatibility: Composite video output can be easily connected to modern displays
  • Preservation: Ensuring the ZX Spectrum remains usable and enjoyable for future generations

In summary, the ZX Spectrum’s enduring popularity has led to numerous modifications and upgrades. The Composite Video Output Mod is one such upgrade, providing an enhanced visual experience for users and ensuring compatibility with modern displays. By understanding the history of the ZX Spectrum and the importance of video output modifications, you can fully appreciate the value of this upgrade.

Composite Video Output Mod: A Superior Choice for ZX Spectrum

While there are multiple video output options available for the ZX Spectrum, the Composite Video Output Mod is a popular choice for its simplicity and notable improvements over the original RF output. In this section, we will discuss the advantages of the Composite Video Output Mod compared to other video output options.

🌟 Composite Video vs. RF Output

The Composite Video Output Mod offers several advantages over the original RF output:

  • Image Quality: Composite video separates the color and luminance signals, resulting in a cleaner and more stable image compared to the combined signal of RF output.
  • Compatibility: Composite video is widely supported by modern TVs and monitors, whereas RF output may not be compatible or require additional adapters.
  • Reduced Interference: Composite video is less susceptible to interference from other devices or radio signals, ensuring a clearer picture.

📊 Comparing Video Output Options

Video Output OptionImage QualityCompatibilityEase of Implementation
RF Output (Original)PoorLowN/A
Composite VideoGoodHighEasy
RGB (SCART)ExcellentModerateModerate
HDMIExcellentHighComplex

💪 Advantages of Composite Video Output Mod

  • Simplicity: The Composite Video Output Mod is relatively simple to implement, even for beginners, as it requires minimal changes to the ZX Spectrum hardware.
  • Cost-effective: This mod is more affordable compared to other video output upgrades, such as HDMI, which may require additional hardware and complex modifications.
  • Improved User Experience: Composite video significantly enhances the visual experience of using a ZX Spectrum, making it more enjoyable for gaming and other applications.

In conclusion, the Composite Video Output Mod is an excellent choice for ZX Spectrum owners looking to upgrade their video output. It offers a balance of improved image quality, compatibility, and ease of implementation, making it an attractive option for beginners and seasoned modders alike.

Components and Tools Required for the ZX Spectrum Composite Video Output Mod

Performing the Composite Video Output Mod for the ZX Spectrum requires several components and tools. Here is a list of what you will need:

🔧 Required Components

  • 74LS08 Quad 2-input AND Gate IC: This is a logic gate chip that helps separate the color and luminance signals.
  • 2x 220 ohm Resistors: These are used to reduce the brightness of the video signal and prevent overdriving.
  • RCA Jack: This is the connector that will be used to output the composite video signal.
  • 2x Diodes (1N4148): These are used to help stabilize the signal and prevent interference.
  • Wires: You will need several wires to connect the components together.

🛠️ Tools Required

  • Soldering Iron: You will need a soldering iron to attach the components to the board.
  • Soldering Wire: You will need soldering wire to attach the components to the board.
  • Wire Strippers: These are used to strip the insulation off the wires to expose the copper.
  • Small Screwdriver: This is used to open the ZX Spectrum case and remove the RF modulator.

💡 Optional Components

  • LM1881 Video Sync Separator: This component can be used to improve the sync signal of the video output, resulting in a more stable picture.

In summary, the Composite Video Output Mod requires a few key components and tools to get started. The required components can be found at most electronics stores or online, and the tools required are relatively common for electronics projects. Optional components, such as the LM1881, can be added to further enhance the video output. By having all the necessary components and tools ready, you can confidently perform the mod and upgrade your ZX Spectrum’s video output.

Step-by-Step Guide for Performing the ZX Spectrum Composite Video Output Mod

Performing the Composite Video Output Mod for the ZX Spectrum requires some soldering and basic electronics knowledge. Follow these step-by-step instructions to perform the mod:

🔨 Step 1: Gather Required Materials and Tools

Before starting the mod, ensure you have all the required materials and tools:

  • 74LS08 Quad 2-input AND Gate IC
  • 2x 220 ohm Resistors
  • RCA Jack
  • 2x Diodes (1N4148)
  • Wires
  • Soldering Iron
  • Soldering Wire
  • Wire Strippers
  • Small Screwdriver

📥 Step 2: Open the ZX Spectrum Case and Remove the RF Modulator

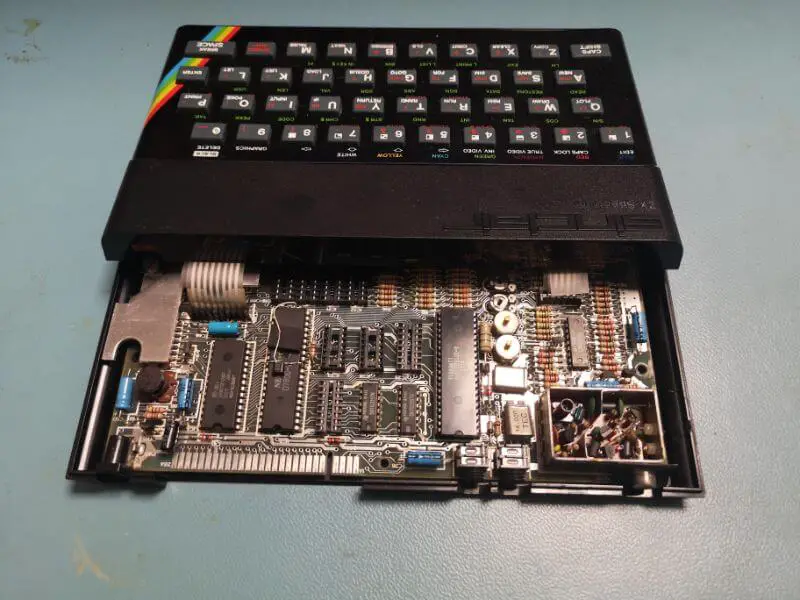

  • Use the small screwdriver to remove the screws securing the ZX Spectrum case.

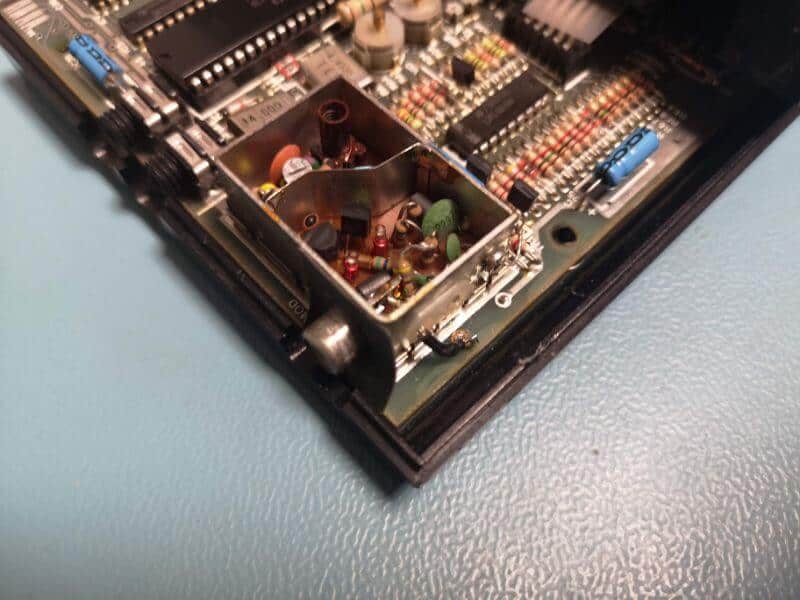

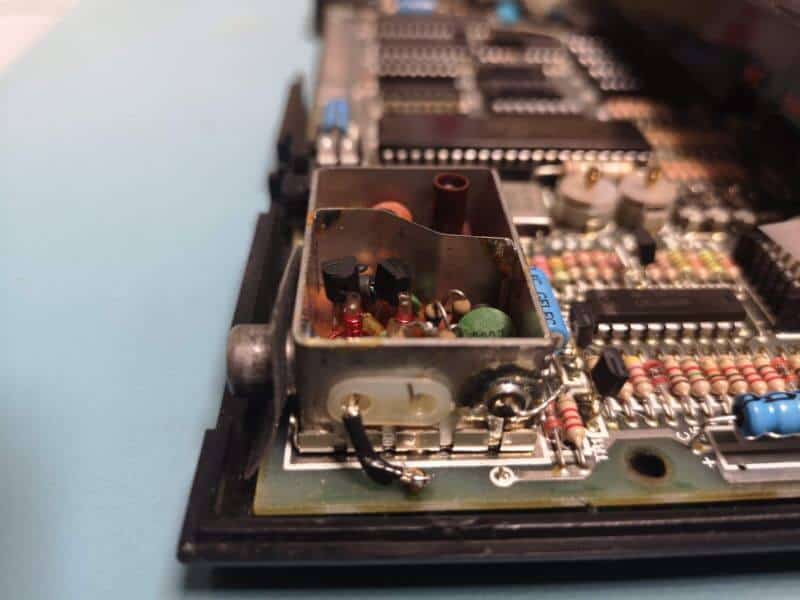

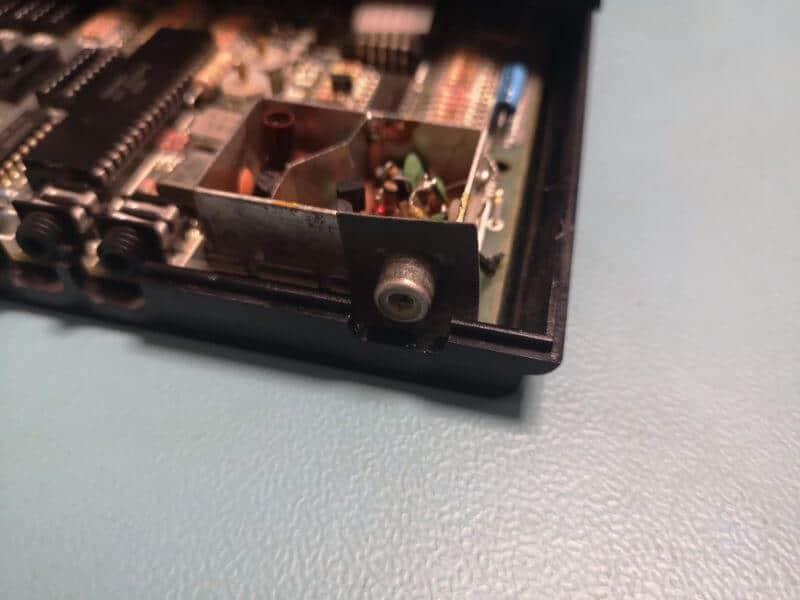

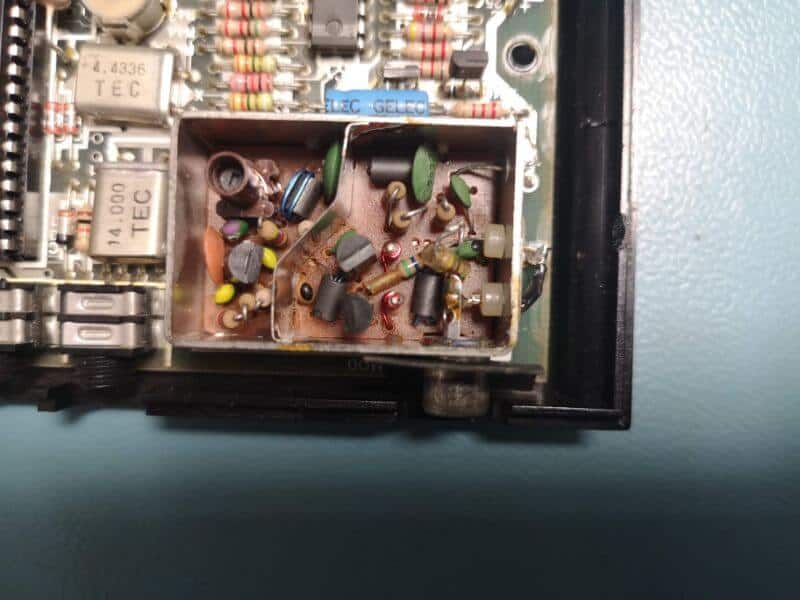

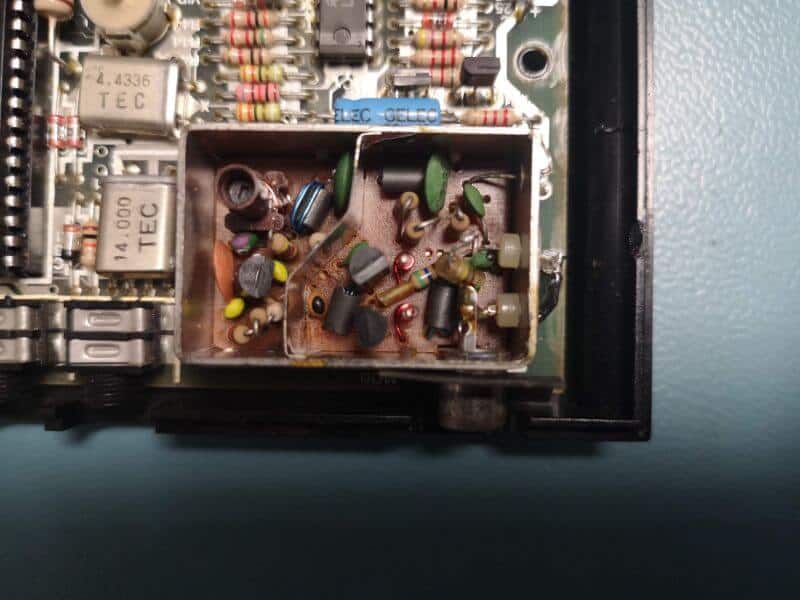

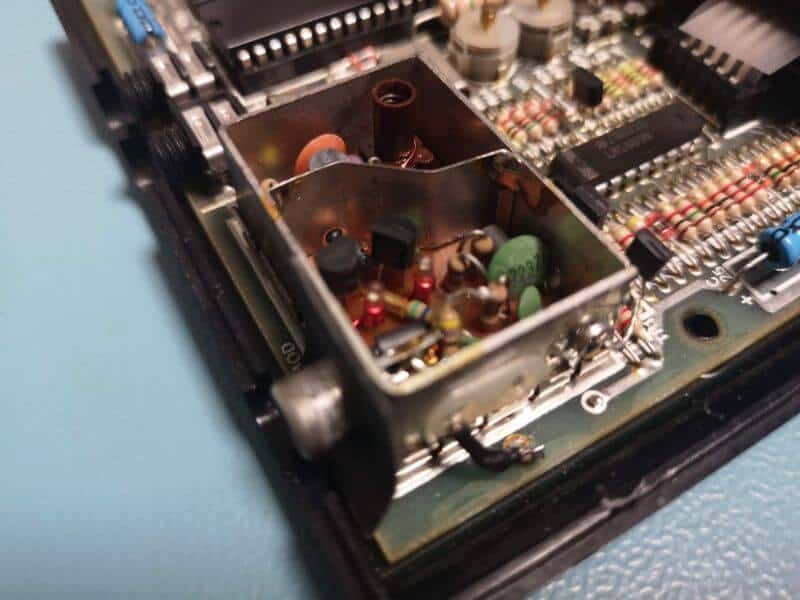

  • Carefully open the case and locate the RF modulator, which is a small box that connects the ZX Spectrum to the TV via RF.
  • Gently remove the RF modulator and set it aside.

🔌 Step 3: Solder the Components to the Board

  • Take the 74LS08 chip and solder it to the board as shown in the diagram below. Be sure to orient it correctly and avoid overheating the chip.
ZX Spectrum Composite Video Output Mod Diagram
  • Solder the 220 ohm resistors to the board as shown in the diagram.
  • Solder the diodes to the board as shown in the diagram.
  • Solder the RCA jack to the board as shown in the diagram.

🔗 Step 4: Connect the Components

  • Connect the wires as shown in the diagram, making sure to double-check your connections.
  • Reattach the case and secure it with the screws.

👀 Step 5: Test the Video Output

  • Connect the ZX Spectrum to a TV or monitor via the RCA jack.
  • Turn on the ZX Spectrum and verify that the video output is working properly.
  • Adjust the brightness and contrast settings on the TV or monitor to achieve the best image quality.

🎉 Step 6: Enjoy Your Upgraded ZX Spectrum!

Congratulations! You have successfully performed the Composite Video Output Mod for the ZX Spectrum. Enjoy the enhanced visual experience and compatibility with modern displays.

In summary, performing the Composite Video Output Mod for the ZX Spectrum requires some basic electronics knowledge and soldering skills. By following these step-by-step instructions, you can upgrade your ZX Spectrum’s video output and enjoy a clearer, more stable picture on modern displays.

Troubleshooting Tips for the ZX Spectrum Composite Video Output Mod

While performing the Composite Video Output Mod for the ZX Spectrum is relatively straightforward, there are some potential issues that you may encounter. Here are some troubleshooting tips to help you overcome any problems:

🚨 Potential Issues

  • No picture or distorted image: This may be caused by improper soldering or incorrect placement of components.
  • Audio interference or no sound: This may be due to improper grounding or incorrect wiring of the audio signal.
  • Lack of color or strange coloration: This may be due to incorrect wiring or insufficient signal strength.

💡 Troubleshooting Tips

  • Double-check your wiring: Ensure all wires are connected to the correct components and the board, and there are no loose connections or frayed wires.
  • Check the placement of components: Ensure all components are properly seated and in the correct orientation.
  • Verify the signal strength: Use a multimeter to verify that the signal strength is within the acceptable range.
  • Test with a different display: Try connecting the ZX Spectrum to a different display to verify that the issue is not with the display itself.

📚 Additional Resources

If you encounter any issues that you are unable to resolve, there are several resources available to help you:

  • ZX Spectrum forums and communities: There are many online communities of ZX Spectrum enthusiasts who can provide advice and support.
  • ZX Spectrum modding guides: There are many detailed guides and tutorials available that cover a wide range of modifications and upgrades for the ZX Spectrum.
  • Electronics resources: If you are unfamiliar with electronics, there are many resources available online that can help you understand the principles of electronics and troubleshoot common issues.

In summary, while there may be some potential issues when performing the Composite Video Output Mod for the ZX Spectrum, with careful attention to detail and troubleshooting, you can overcome any problems and enjoy the benefits of enhanced video output.

Upgrade Your ZX Spectrum with the Composite Video Output Mod

The ZX Spectrum Composite Video Output Mod is a relatively simple and cost-effective upgrade that can significantly enhance the visual experience of using a ZX Spectrum. In this blog post, we have explored the history of the ZX Spectrum, the need for video output modifications, the advantages of the Composite Video Output Mod, and the steps required to perform the mod. Here are some of the key takeaways:

🚀 Benefits of the Composite Video Output Mod

  • Enhanced visual experience: The Composite Video Output Mod provides a clearer, more stable picture than the original RF output.
  • Compatibility: The mod ensures compatibility with modern displays, making it easier to use and enjoy a ZX Spectrum in the modern era.
  • Preservation: By upgrading the video output, you can ensure the ZX Spectrum remains usable and enjoyable for future generations.

👨‍🔧 Performing the Mod for Beginners

  • The mod is relatively simple to perform and requires minimal changes to the ZX Spectrum hardware.
  • Basic electronics knowledge and soldering skills are required.
  • Troubleshooting tips and resources are available to help overcome any issues.

🎮 Enjoying the Upgraded ZX Spectrum

  • Once the mod is completed, users can enjoy a clearer, more stable picture on modern displays.
  • The upgraded ZX Spectrum can be used for gaming, programming, and other applications.
  • The mod is a cost-effective and worthwhile upgrade for any ZX Spectrum enthusiast.

In conclusion, the Composite Video Output Mod is a valuable upgrade for ZX Spectrum owners looking to enhance their visual experience and ensure compatibility with modern displays. By following the step-by-step guide and utilizing the troubleshooting tips and resources, even beginners can perform the mod with confidence. Upgrade your ZX Spectrum today and enjoy a renewed appreciation for this iconic home computer.
